Hot wall vacuum furnace
  • Hot wall vacuum furnace
  • Hot wall vacuum furnace
  • Hot wall vacuum furnace
  • Hot wall vacuum furnace
  • Hot wall vacuum furnace

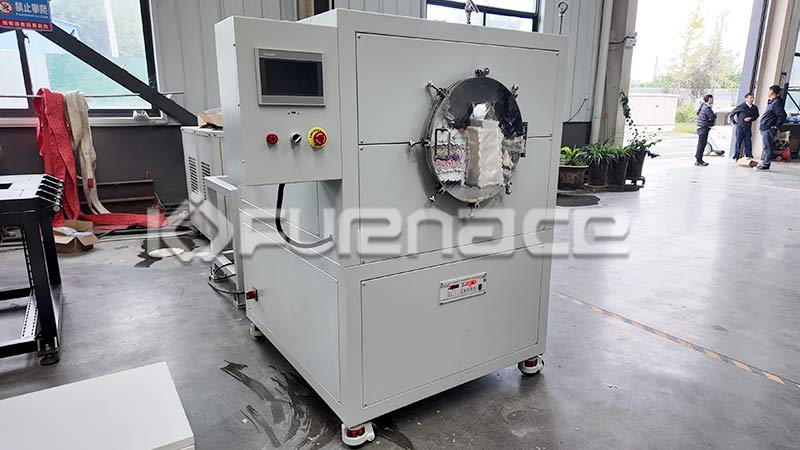

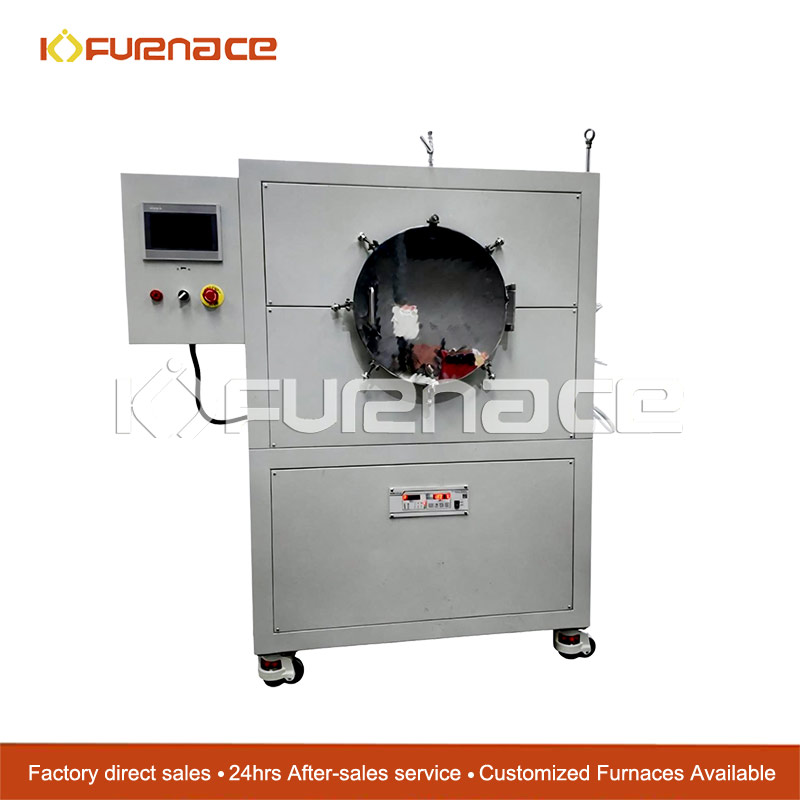

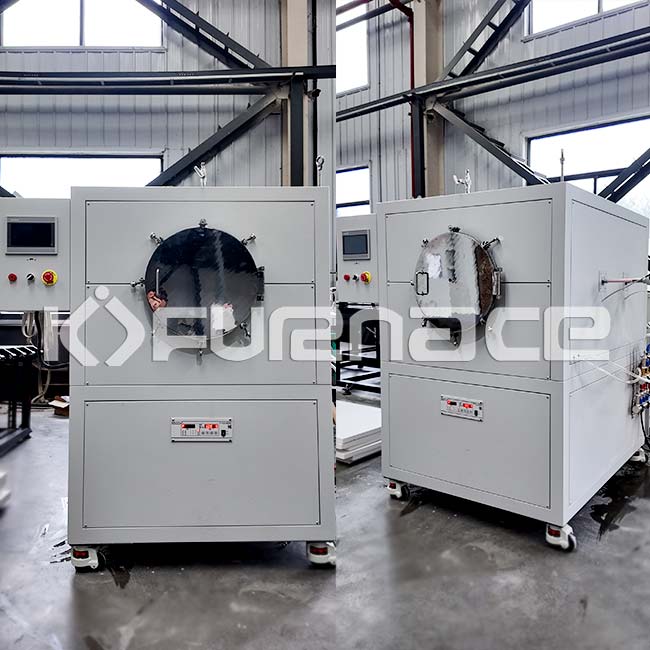

    Model:KJ-TG1000-H350LK2

    Description:

    This Hot wall vacuum furnace mainly used for bright annealing after quenching of high-speed steel, die steel, tool steel, alloy steel, titanium alloy, etc.

    Introduction:
         The external heating vacuum furnace is also called a hot wall vacuum furnace. It is mainly composed of a furnace tank, heating elements, insulation materials, furnace doors, exhaust systems, temperature control systems and other parts. The furnace tank is made of alloy, has good sealing performance and high temperature resistance, and can withstand a certain pressure;. The vacuum system uses a mechanical pump, a diffusion pump group, a high vacuum butterfly valve, a vacuum gauge, a vacuum vent valve, a vacuum pipeline, etc., and has a charging interface. In order to reduce the vibration of the furnace body, a metal bellows is used to connect the vacuum pipeline to the pump, and the vacuum measurement is measured by a composite vacuum gauge. This vacuum furnace is suitable for high-temperature hot forming of new materials such as powder metallurgy, functional ceramics, silicon carbide, and alumina. It is mainly used for bright annealing of high-speed steel, die steel, tool steel, alloy steel, titanium alloy and other materials after quenching, eliminating residual internal stress after quenching of forgings, welded parts, cold stamping parts, and workpieces, and preventing deformation and cracking of workpieces.

    Application:
    Externally heated vacuum furnace is a common heat treatment equipment, widely used in the following fields:

    Material vacuum sintering: used for vacuum sintering of ceramic materials, single crystal silicon, polycrystalline silicon, ruby, silicon carbide and silicon nitride, powder metallurgy (pressing and MIM), cemented carbide, and other metals and alloy materials composed of refractory metals.

    Vacuum brazing: used for vacuum brazing and annealing of rare earth permanent magnet alloys, carbides, metal ceramics, stainless steel, titanium and titanium alloys, and high-temperature alloy parts.

    Metal heat treatment: used for high-temperature brazing, sintering, tempering, annealing and other processes of stainless steel, copper, titanium alloy, cemented carbide, high-temperature alloy and other materials.


    external heating vacuum furnace
    Hot wall vacuum furnace



    features
    • Compared with the internal heating vacuum furnace, the external heating vacuum furnace has a simpler structure, lower manufacturing difficulty and cost, is easier to seal, and has a small amount of air extraction, making it easier to achieve the required

    • There is no vacuum discharge problem in the external heating vacuum furnace, and the heating element is isolated from the workpiece, avoiding the risk of damage to the workpiece or safety accidents caused by heating element failure, and production is safe

    • Equipped with a high-performance vacuum system, including vacuum pumps, vacuum pipes, vacuum valves and other components, it can quickly and effectively extract the air in the furnace. A higher vacuum level can be achieved by selecting different vacuum pu

    • Equipped with PID temperature control system, combined with high-precision thermocouple temperature measurement, it can accurately measure and control the temperature in the furnace, with a temperature control accuracy of ±1°C, ensuring that the material

    Technical Parameters
    Product name Hot wall vacuum furnace
    Model  KJ-TG1000-H350LK2
    Long-term working temperature ≦1000℃
    Liner material Stainless steel liner can withstand high temperature and high pressure
    Diameter φ100-600mm
    Heating zone Customized according to your needs
    Temperature Control System PID control and self-tuning adjustment, intelligent 30-segment programmable
    Temperature control accuracy ±1℃
    Temperature protection With over temperature and burnout protection function
    Heating rate 0-10℃/minute
    Heating element Resistance wire/Silicon carbon rod
    Pressure relief protection Equipped with a pressure relief valve, when the pressure of the atmosphere inside the furnace is too high, it can automatically deflate for protection
    Sealing system The furnace door is sealed with high-temperature silicone rubber, and the furnace has an air inlet and an air outlet to allow gas to pass through.
    Vacuumable.
    Furnace material High purity alumina refractory fiber
    Operating Voltage AC 220/380V 50HZ (Customized on your needs)
    Temperature measuring element N-type thermocouple temperature measurement
    Furnace structure Vertical, double-layer air-cooled structure
    Way of opening the door side door
    Furnace door structure Double-layer water-cooling structure to protect the sealing and reduce the temperature of the furnace door (the buyer of the water-cooler should prepare it by himself)
    Cooling system Equipped with circulating water, cooling furnace door and vacuum pump
    Vacuum system Rotary vane pump + diffusion pump unit
    Ultimate vacuum 10-1000pa/6.67*10-3pa/1-10pa
    Vacuum display Composite digital display vacuum gauge
    Vacuum valve fittings Vacuum bellows, high vacuum butterfly valve, vacuum gauge, etc. constitute the vacuum system
    Provide related accessories 1 pair of crucible pliers, 1 pair of high temperature gloves, 1 set of disassembly wrench, 1 copy of instruction manual, 1 copy of certificate of conformity.
     Warranty The warranty period is 15 months from the date of delivery or 12 months from the customer's acceptance, whichever comes first (except for consumables and man-made damage); beyond the warranty period, the supplier will continue to provide the accessories required by the buyer and technical services, and charge the actual expenses incurred.
